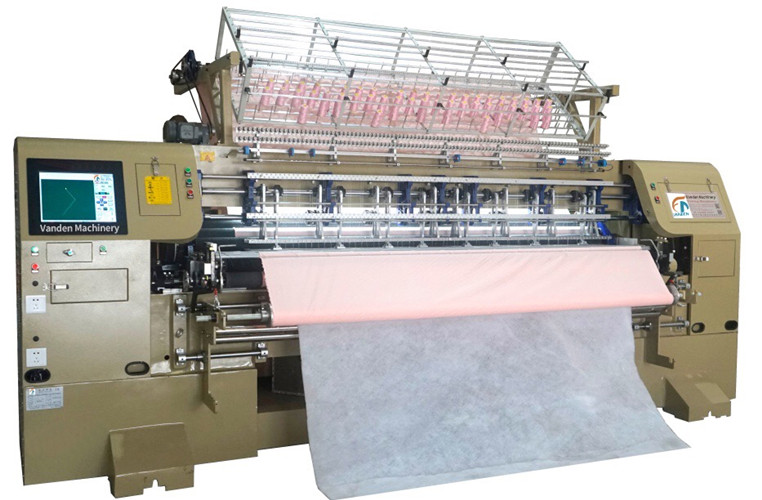

VD-1 Computerized High-end Shuttle Multi-needle Quilting Machine

Description

FUNCTION:
1. The upgraded computer control system and mechanical manufacturing process technology.
2. The needle bar running with needle bar frame, no need to add extra lube and avoid the materials be soiled by lube.
3. Needle bar frame structure is more than firm and durable, so that the cost of maintenance is cheaper.
4.Both the saddle frames and the rollers are imported servo drive equipment.
5. Adopt sadding rack guide rail, steady running. Patterns are more precise, lower thread break rate.
6. Principal axis adopt the frequency conversion devise.
7. Adjust speed by computer and the speed can reach 500-1000r/min, the stitch can be set between 2mm-8mm.
8.Adopt the mouse make pattern directly and compatible with embroidery file format(DST DSB)
9. 360°random quilting and limitless multi-span and independent quilting.
10. The compensation function, an effective solution for lopping pattern with thick material.
11. Advanced and practical testing upper thread broken techniques, the machine will auto-stop when thread is broken.
12. The fuselage of beam is reinforced and the machine runs more stably.

MAIN TECHNICAL PARAMETERS:

Parameter（mm）	VD1-64-2c/ VD1-64-3c	VD1-82-2c/ VD1-82-3c	VD1-94-2c/ VD1-94-3c	VD1-112-2c/ VD1-112-3c	VD1-128-2c/ VD1-128-3c
Size	*360015001700*	*430015001700*	*460015001700*	*510015001700*	*550015001700*
Weight	3500KG	4300kg	4600kg	5500KG	5500kg
Quilting width	1700	2100	2450	2800	3200
Needle bar space	2d 76.2(3″） 3d 152.4(3″+3″）	2d 76.2(3″） 3d 152.4(3″+3″）	2d 76.2(3″） 3d 152.4(3″+3″）	2d 76.2(3″） 3d 152.4(3″+3″）	2d 76.2(3″） 3d 152.4(3″+3″）
Needle space	25.4	25.4	25.4	25.4	25.4
X-axis movement	204	254	254	304	304
Quilting thickness	≤50	≤50	≤50	≤50	≤50
Stitch	2-8	2-8	2-8	2-8	2-8
Output	10-210m/h	10-210m/h	10-210m/h	10-210m/h	10-210m/h
Needle type	#14，#16，#19	#14，#16，#19	#14，#16，#19	#14，#16，#19	#14，#16，#19
Rolling speed	500-1000r/min	500-1000r/min	500-1000r/min	500-1000r/min	500-1000r/min
Voltage	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ	380V/50HZ 220V/60HZ
Power	4KW	5.5KW	6.5KW	7.5KW	7.5KW
