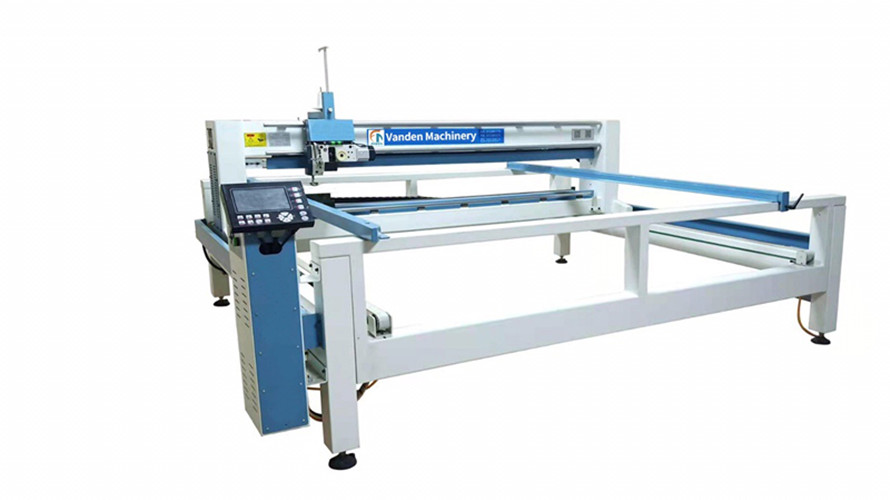

VD-2 Computerized Single-needle Quilting Machine

It is the equipment for making the goods of quilts, sheet and bedding.
Description
FEATURES:
On the basis of VD-1, the mechanical structure is simplified which abandoned the traditional frequency conversion system.
Adopt high precision servo synchronization system, so as to achieve high stability and less noise but high-speed quilting.




MAIN TECHNICAL PARAMETERS:
Model VD-2-2224 VD-2-2426
Max quilt size 2200*2400mm 2400*2600mm
Quilting thickness 1200gsm 1200gsm
Spindle speed 1500-2000r/min 1500-2000r/min
Needle drop size 2000*2200mm 2200*2400mm
Voltage 220v/50hz 220v/50hz
Power 2.0kw 2.0kw
Weight 600kg 700kg
Dimension 3000*3100*1220mm 3200*3300*1220mm
