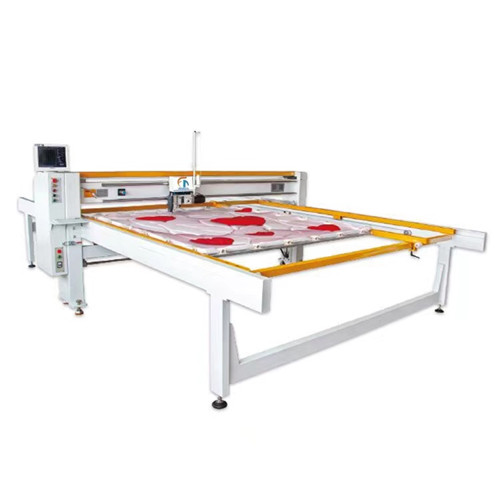

VD-3 Computerized Single-needle Quilting Machine

Description

FEATURES:
1.The performance is stable, the quilting is beautiful. It is suitable for high requirements and large quantities factory.
2.The computer displays the preset parameters, quilting patterns and working status both in Chinese and English.
3.The operator can select the working parameters according to the prompts on the screen.
4.When quilting, real-time dynamic tracking and pattern color changing display.

MAIN TECHNICAL PARAMETERS:

Model	VD-3-2628	VD-3-2830	VD-3-3032
Max quilt size	*26002800mm**	*28003000mm**	*30003200mm**
Quilting thickness	1200gsm	1200gsm	1200gsm
Spindle speed	2000-2200r/min	2000-2200r/min	2000-2200r/min
Needle drop size	*24002600mm**	*26002800mm**	*28003000mm**
Voltage	220v/50hz	220v/50hz	220v/50hz
Power	2.0kw	2.0kw	2.0kw
Weight	1000kg	1200kg	1400kg
Dimension	*340055001400mm*	*360059001400mm*	*380063001400mm*
