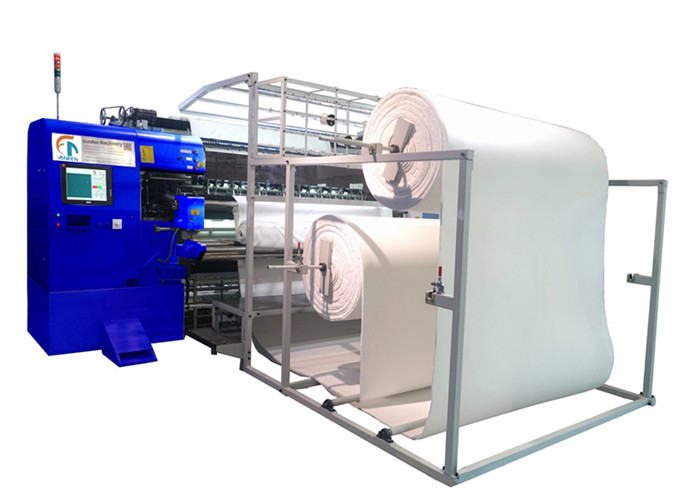

VD-4 Computerized Non-shuttle Chain Stitch Multi-needle Quilting Machine

Description

FUNCTION:
1.Adopt the advanced process design.
2.Needle bar and pressing block take the double rocker, avoid the materials be soiled by lube.
3.High rigidity machine body, perfect protecting equipment and steady-going control system.
4.X,Y motors are driven by servo system, and principal axis takes frequency ports system.
5.Test the working state of all sensors and computer in real time.
6.Auto-stop system when the upper or bottom thread broke by infrared. Auto lift needle and adjust the speed by computer.
7.Auto faults tips for servo motor system and transducer, which is convenient to eliminate problems.
8.360°quilting, and limitless multi-span and independent quilting.
9.Steady running, high speed, low noise, very thick material with precise quilting.
10.Ringing notice when start machine.

MAIN TECHNICAL PARAMETERS:

Model	Needle bar space	Needle space	Size	Weight	Quilting width	X-axis movement
VD4-94-4D	2″+3″+3″	1″	*500016502000*	6500kg	2400	410
VD4-94-3D	2″+3″	1″	*500016502000*	6500kg	2400	410
Quilting thickness	Stitch	Output	Needle type	Rolling speed	Voltage	Power
≤80	2-8	10-250m/h	21# 24#	600-1200r/min	380V/50HZ 220V/60HZ	7.5KW
